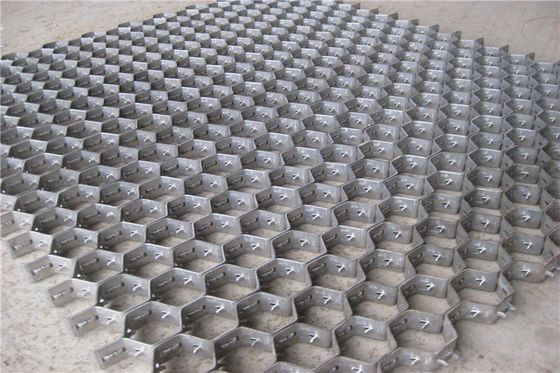

2mm Hexmesh Refractory Hex Grid And Flex Metal Refractory Lining

Product Description:

Hex Mesh, also known as hex grid metal, is a type of refractory material that finds extensive usage in furnaces, reactors, ducts, flues, as well as various industrial applications, providing extended-term protection for armor against the corrosive effects of industrial flooring.

The hex mesh materials are generally composed of various types of carbon steel, including A3, OCr13, 1Cr13, and 0Cr18Ni9, as well as other alloys like 1Cr18Ni9Ti, Cr25Ni20, SUS304, and SUS316.



Applications:

Hex steel mesh is a highly versatile refractory material known for its flexibility, high strength, and resistance to erosion. This makes it an ideal choice for lining various high-temperature industrial equipment, including furnaces, reactors, cyclones, ducts, and flues. Hex steel mesh can withstand harsh conditions and ensure longevity and efficiency in these applications.

 2. Hex mesh is also an excellent material for industrial floors, where it provides long-term protection in armor applications. This includes areas such as loading docks, ramps, high-traffic aisles for forklifts and trucks, hot floors for foundries, forges, and steel mills, refuse disposal plant floors, and any other place where floors are subject to severe impact and rolling loads. The use of Hex mesh in these applications can increase durability, safety, and cost-effectiveness. ```html

Hex mesh is also an excellent material for industrial floors, where it provides long-term protection in armor applications. This includes areas such as loading docks, ramps, high-traffic aisles for forklifts and trucks, hot floors for foundries, forges, and steel mills, refuse disposal plant floors, and any other place where floors are subject to severe impact and rolling loads. The use of Hex mesh in these applications can increase durability, safety, and cost-effectiveness.

3. The flexibility of Hex Metal allows it to be easily rolled and shaped to conform to circular surfaces. This feature makes it an ideal choice for lining various equipment of virtually any shape or configuration, such as ducts, furnaces, reactor vessels, cyclones, flue gas lines, and more. Additionally, Hex metal and flex metal refractory linings can be used as mesh grating for reinforcing linings, floors, and cement structures that require added support. ```html

The flexibility of Hex Metal allows it to be easily rolled and shaped to conform to circular surfaces. This feature makes it an ideal choice for lining various equipment of virtually any shape or configuration, such as ducts, furnaces, reactor vessels, cyclones, flue gas lines, and more. Additionally, Hex metal and flex metal refractory linings can be used as mesh grating for reinforcing linings, floors, and cement structures that require added support.



Hex Grid and Flex Metal Refractory Lining Features

• Substantial insulation performances, lining tight uniform density, small energy consumption
• High-intensity, low high-temperature liquid metal slag, and anti-erosion ability, alloying elements on the high yield
• High sintering speed and good corrosion resistance, spalling resistance, when the shutdown of smaller crack, high crack healing ability
• Construction of simple and labor intensity of the small, efficient operating environment

Material	A3/Q235,SS304,310S,1Cr18Ni9Ti,0Cr13,Q345…
Gauge	1.0mm / 1.2mm / 1.5mm / 1.8mm /2.0mm / 2.5mm / 3.0mm
Thickness	10mm~70mm
Aperture	50mm
Panel size	0.96mx1.05m(according to the raw material size)
Note	Customers/other requirement is available for us

Packing and Shipping:

Product Packaging:

• The hexmesh refractory product will be packaged in a sturdy cardboard box.
• The box will be labeled with the product name, quantity, and any necessary handling instructions.
• The hexmesh refractory product will be wrapped in protective material to prevent any damage during transportation.

Shipping:

• The hexmesh refractory product will be shipped via a reliable carrier service.
• The shipping cost will depend on the destination and weight of the product.
• The estimated delivery time will be provided upon shipping confirmation.
• Customers will be notified of the tracking number as soon as the product is shipped.



FAQ:

Frequently Asked Questions:

Q: What is the brand name of the product?

A: The brand name of the product is ZhongTeng.

Q: What is the model number of the product?

A: The model number of the product is ZT--010.

Q: What is the place of origin of the product?

A: The place of origin of the product is China.

Q: What is the minimum order quantity for the product?

A: The minimum order quantity for the product is 100M2.

Q: What is the price of the product?

A: The price of the product ranges from 25-89/M2.

Q: What are the packaging details for the product?

A: The packaging details for the product are pallets or wooden box.

Q: What is the delivery time for the product?

A: The delivery time for the product is 10-20 days.

Q: What are the payment terms for the product?

A: The payment terms for the product are TT or LC.

Q: What is the supply ability of the product?

A: The supply ability of the product is 1300/M2.
